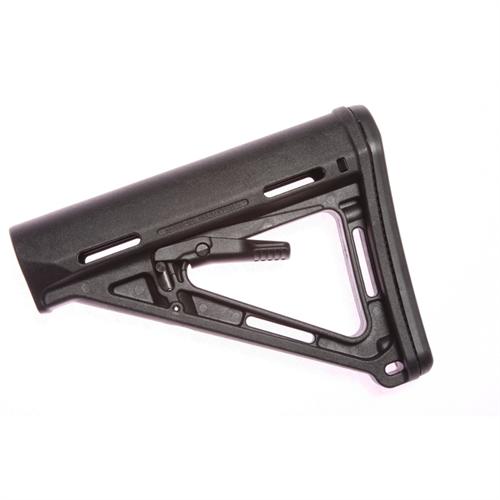

Magpul MOE Carbine Stock

Magpul Original Equipment (MOE) is a line of firearm accessories designed to provide a high-quality, economical alternative to standard weapon parts. The MOE line distinguishes itself with a simplified feature set, but maintains Magpul engineering and material quality.

The Magpul MOE Stock – Mil-Spec Model is a drop-in replacement buttstock for AR15/M16 carbines using mil-spec sized receiver extension tubes. Designed for light, fast action the streamlined A-frame profile avoids snagging and shields the release latch to prevent accidental activation. The Mil-Spec Model includes a standard 0.30" rubber butt-pad which provides positive shoulder purchase to prevent slippage even with body armor or modular gear.

Features:

• Mounts on mil-spec sized carbine receiver extension tube (not included) from manufacturers such as Colt, Armalite, S&W, LMT, and others (please see the note below)
• Sloping cheek weld combines a slim profile with user comfort
• Shielded release latch prevents snagging and accidental operation
• Premium chrome-silicon lock spring provides positive locking and long service life
• Side mounting slots accept optional cheek risers for NON-AR15/M16 applications
• Removable 0.30" Rubber Butt-Pad offers an anti-slip surface and increases impact protection
• Compatible with Magpul ASAP® and other receiver-mount sling attachments
• Sling Mounts
• Rear/Bottom - 1.25" sling loops
• Toe - Lanyard hole for custom para-cord rigs

Optional Accessories*

• Extended Rubber Butt-Pad, 0.55"
• Enhanced Rubber Butt-Pad, 0.70"
• Cheek Risers (0.25", 0.50", 0.75" for NON-AR15/M16 applications)

Specifications*

• MOE, Mil-Spec (stock configuration)
• Weight: 0.50 lb.
• Weight, w/ Rec. Extension: 0.75 lb.
• Length, Maximum: 6.90 in.
• LOP Adjustment Range: 3.25 in.
• LOP, M4 Collapsed: 10.70 in.
• LOP, M4 Extended: 13.95 in.
• MOE, Commercial-Spec (stock configuration)
• Weight: 0.53 lb.
• Weight, w/ Rec. Extension: 0.86 lb.
• Length, Maximum: 7.15 in.
• LOP Adjustment Range: 3.80 in.
• LOP, M4 Collapsed: 10.95 in.
• LOP, M4 Extended: 14.75 in.

NOTE: There are two basic sizes of M4 Carbine receiver extensions (buffer tubes): mil-spec and commercial-spec. If you have a commercial-spec extension on your rifle, make sure to order the Commercial-Spec MOE.
If you have one of the uncommon military tubes with an extended slant-back, along with the Mil-Spec MOE you will also need to order the Extended Rubber Butt-Pad, 0.55" (sold separately).


* Specifications based on standard-length (flat-back) M4 Carbine receiver extension and may vary depending on tube manufacturer.
Standard Rubber Butt-Pad, 0.30" weight: 0.08 lb.
Optional Extended Rubber Butt-Pad, 0.55" weight: 0.11 lb.
Optional Enhanced Rubber Butt-Pad weight: 0.13 lb.

Made in U.S.A.

This item or some of it’s components cannot be exported from the United States of America without a valid export permit from the U.S. State Dept. Unfortunately this does include APO addresses due to ITAR restrictions. Please check with your State's Regulations before ordering.
