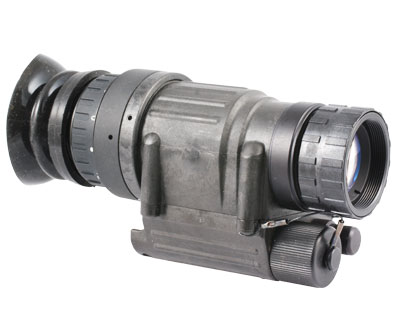

NO-PVS-14G-3A Generation 3

Designed for the most demanding nighttime applications, this Generation 3 system is based on the military issue AN/PVS-14. The NO-PVS-14 features Automatic Brightness Control with manual override for changes in light conditions, Bright Light Protection, demist shield, a sacrificial window, and internal low battery and infrared indicators all packaged in a compact, rugged, waterproof nitrogen-purged housing.

Included in the NO-PVS-14G Mono Goggle package is a fully adjustable, semi-rigged, padded, Mil Spec headgear allowing scope rotation between eyes and extended eye relief.

A large selection of optional accessories make the NO-PVS-14 extremely versatile. Detection ranges can be increased by adding to the 1x objective high-resolution 3x or 5x Mil Spec Afocal lenses. To illuminate distant objects, several external IR Illuminators are available. A camera/camcorder adaptor attaches the NO-PVS-14 to 35 mm SLR cameras and camcorders for nighttime use. For azimuth, a magnetic compass can be attached to the device to superimpose compass headings on the night vision image. Installed on a Mil Spec weapon mount, the NO-PVS-14 adds night vision capabilities to daytime holosights like EoTech or Aimpoint. The Night Optics USA, Inc. proprietary (patent pending) Day/Night Adaptor quickly transforms a daytime riflescope into a 24-hour system without loss of weapon zero by allowing quick connection of a NO-PVS-14 to the eye-piece of daytime optics.



Image Intensifier	Generation 3 US
Resolution	64-72 lp/mm
Magnification	1x (3x or 5x optional)
Lens System	26 mm f1.2
FOV	40°
FOV @ 1000 yards	2184'
FOV @ 1000 meters	728 meters
Range of Focus	10" to infinity 25 cm to infinity
Detection Range	1148' 350 meters
Recognition Range	984' 300 meters
Diopter Adjustment	+2 to -6
Weather Resistant	Waterproof 3' for 30 min
Camera/Camcorder Adaptable	Yes
IR Illuminator	Yes
Battery Type/Life	AA(x1) / 20 hours
Dimensions	4.5" x 2.25" X 2" 114mm x 57mm x 50mm
Weight	13.8 oz 392 grams
Operating Temperature	-60°F to 125° F -20°C to+45°C
Tube Data Sheet	Yes
Warranty	2 years
