CTR- Compact Type Restricted Stock

<< Previous in Stocks Next in Stocks >>

Your Price: Starting at $65.96

Product Options

Model:
Color:

Mil-Spec

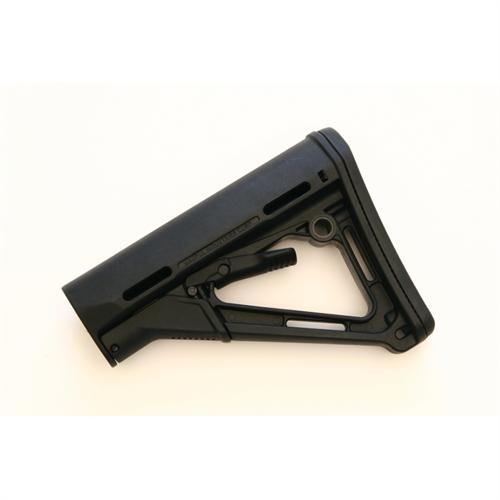

The Magpul CTR (Compact/Type Restricted) – Mil-Spec Model is a drop-in replacement buttstock for AR15/M16 carbines using mil-spec sized receiver extension tubes. Designed for light, fast action the streamlined A-frame profile avoids snagging and shields the release latch to prevent accidental activation. The CTR also features a supplemental friction lock system that minimizes excessive stock movement for enhanced weapon stability* and an ambidextrous QD sling mount that will accept any push-button sling swivel. The Mil-Spec Model includes a standard 0.30" rubber butt-pad which provides positive shoulder purchase to prevent slippage even with body armor or modular gear.

Features:

  • Mounts on mil-spec sized carbine receiver extension tube (not included) from manufacturers such as Colt, Armalite, S&W, LMT, and others (please see the note below)
  • Supplemental friction lock minimizes accuracy robbing wobble*
  • Sloping cheek weld combines a slim profile with user comfort
  • Shielded release latch prevents snagging and accidental operation
  • Premium chrome-silicon lock spring provides positive locking and long service life
  • Side mounting slots accept optional cheek risers for NON-AR15/M16 applications
  • Removable 0.30" Rubber Butt-Pad offers an anti-slip surface and increases impact protection
  • Compatible with Magpul ASAP® and other receiver-mount sling attachments
  • Sling Mounts
    • Rear - Push-button QD swivel sling mount accommodates up to 1.5" swivels (ambidextrous)
    • Rear/Bottom - 1.25" sling loops
    • Toe - Lanyard hole for custom para-cord rigs

Optional Accessories**

  • Extended Rubber Butt-Pad, 0.55"
  • Enhanced Rubber Butt-Pad, 0.70"
  • Cheek Risers (0.25", 0.50", 0.75" for NON-AR15/M16 applications)

Specifications**

  • CTR, Mil-Spec (stock configuration)
    • Weight: 0.55 lb.
    • Weight, w/ Rec. Extension: 0.80 lb.
    • Length, Maximum: 6.90 in.
    • LOP Adjustment Range: 3.25 in.
    • LOP, M4 Collapsed: 10.70 in.
    • LOP, M4 Extended: 13.95 in.

If you happen to have one of the uncommon military tubes with an extended slant-back, along with the Mil-Spec CTR you will also need to order the Extended Rubber Butt-Pad, 0.55" (sold separately).

* Friction lock performance may vary depending on the host receiver extension's dimensional tolerances.

** Specifications based on standard-length (flat-back) M4 Carbine receiver extension and may vary depending on tube manufacturer.
Standard Rubber Butt-Pad, 0.30" weight: 0.08 lb. Optional Extended Rubber Butt-Pad, 0.55" weight: 0.11 lb. Optional Enhanced Rubber Butt-Pad weight: 0.13 lb.

Commercial

The Magpul CTR (Compact/Type Restricted) – Commercial-Spec Model is a drop-in replacement buttstock for AR15/M16 carbines using commercial-spec sized receiver extension tubes. Designed for light, fast action the streamlined A-frame profile avoids snagging and shields the release latch to prevent accidental activation. The CTR also features a supplemental friction lock system that minimizes excessive stock movement for enhanced weapon stability* and an ambidextrous QD sling mount that will accept any push-button sling swivel. The Commercial-Spec Model includes an extended 0.55" rubber butt-pad to provide positive shoulder purchase and accommodates the longer, slanted back common to most commercial-spec tubes.

Features:

  • Mounts on commercial-spec sized carbine receiver extension tube (not included) from manufacturers such as Bushmaster, DPMS, Olympic, and others (please see the note below)
  • Supplemental friction lock minimizes accuracy robbing wobble*
  • Sloping cheek weld combines a slim profile with user comfort
  • Shielded release latch prevents snagging and accidental operation
  • Premium chrome-silicon lock spring provides positive locking and long service life
  • Side mounting slots accept optional cheek risers for NON-AR15/M16 applications
  • Replaceable 0.55" Extended Rubber Butt-Pad offers an anti-slip surface and increases impact protection
  • Compatible with Magpul ASAP® and other receiver-mount sling attachments
  • Sling Mounts
    • Rear - Push-button QD swivel sling mount accommodates up to 1.5" swivels (ambidextrous)
    • Rear/Bottom - 1.25" sling loops
    • Toe - Lanyard hole for custom para-cord rigs

Optional Accessories**

  • Rubber Butt-Pad, 0.30"
  • Enhanced Rubber Butt-Pad, 0.70:
  • Cheek Risers (0.25", 0.50", 0.75" for NON-AR15/M16 applications)

Specifications**

  • CTR, Commercial-Spec (stock configuration)
    • Weight: 0.58 lb.
    • Weight, w/ Rec. Extension: 0.91 lb.
    • Length, Maximum: 7.15 in.
    • LOP Adjustment Range: 3.80 in.
    • LOP, M4 Collapsed: 10.95 in.
    • LOP, M4 Extended: 14.75 in.

* Friction lock performance may vary depending on the host receiver extension's dimensional tolerances.

** Specifications based on extended-length (slant-back) commercial-spec carbine receiver extension and may vary depending on tube manufacturer.
Extended Rubber Butt-Pad, 0.55" weight: 0.11 lb.
Optional Rubber Butt-Pad, 0.30" (weight: 0.08 lb.) and Enhanced Rubber Butt-Pad, 0.70" (weight: 0.13 lb.) may ONLY be used with the uncommon standard-length (flat-back) commercial-spec carbine receiver extensions.

Made in U.S.A.

This item or some of it’s components cannot be exported from the United States of America without a valid export permit from the U.S. State Dept. Unfortunately this does include APO addresses due to ITAR restrictions. Please check with your State's Regulations before ordering.
