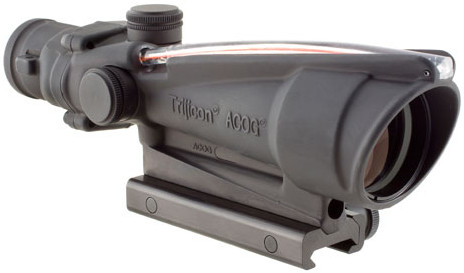

7.62/.308 ACOG - 3.5x35 Model #: TA11 w/TA51 Mount

Chevron Reticle
The ranging reticle is calibrated for 7.62 (.308 cal) flat-top rifles to 800 meters. Includes Flat Top Adapter. The chevron reticle is designed to be zeroed using the tip at 100 meters. The width of the chevron at the base is 5.53 MOA which is at 19” at 300 meters. This allows range estimation for silhouette targets.

Horseshoe Reticle
Includes Flattop Adapter. Features dual illumination (Fiber optics provides daylight illumination and tritium illuminates reticle at night). The ranging reticle is calibrated for 7.62(.308 cal) flattop rifles out to 1200 meters.

Crosshair Reticle
The ranging reticle is calibrated for 7.62mm (.308 cal) flat-top rifles to 1200 meters. Includes Flat Top Adapter. Daytime illumination is provided by fiber optics and Tritium illuminates the scopes at night.

The TA11E-G also includes:
1 ACOG Thumbscrew Flattop Adapter (TA51)
1 3.5x35 Scopecoat (TA63)
1 LENSPEN® (TA56)
1 Trijicon Logo Sticker (PR15)
1 ACOG BAC Manual
1 Warranty Card

Specifications:

Magnification	3.5x
Objective Size	35
Bullet Drop Compensator	Yes
Length (In)	8
Weight (oz)	14.0 w/out Mount
Illumination Source	Fiber Optics & Tritium
Reticle Pattern	Chevron, Crosshair or Horseshoe
Day Reticle Color	Amber, Green or Red
Night Reticle Color	Amber, Green or Red
Calibration	0.308
Eye Relief	2.4
Exit Pupil	10
Field of View (Degrees)	5.5
Field of View @ 100 yards (ft)	28.9
Adjustment @ 100 yards (clicks/in)	3
Mount	TA51
Mount Comes With	TA51
Housing Material	Forged Aluminum
