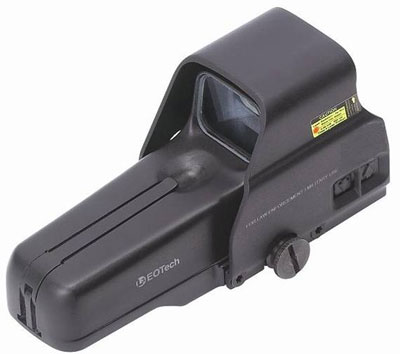

517.A65
|
|
Item Number: ET 517.A65
|
Share |
|
The 517.A65 was developed to optimize the functionality of the HWS. The buttons have been moved from the back to the left side for instant access, allowing a magnifier or a back up iron sight to fit closely to the HWS body. This new button position allows the user to operate the HWS function switches easier than ever before. Additionally, a portion of the front base has been raised to allow the sight to fit over standard hand guards found on many M-4 or M-16 style weapons
- Buttons on left side to work specifically with magnifiers
- AA Battery model (supports Lithium or Alkaline)
- Reticle: 65 MOA ring with a single 1 MOA dot
- Interfaces to 1" Picatinny (MIL-STD-1913) rail
SPECS:
Operation
- Optics: Transmission holography - parallax free
- Magnification: 1x
- Eye Relief: Unlimited
- Length/Width/Height: 5.6"x2.1"x2.8" (142x53x71 mm)
- Weight: 11.9 oz (337 grams)
- Temperature: -40 to 150 F (using AA lithiums); -20 to 140 F (AA Alkaline)
- Waterproof: Submersible to 10 ft depth
- Sealing: Fogproof internal optics
- Color/Finish: Non reflective black with hard coat finish
- Adjustment (per click): 0.5 MOA (1/2" at 100 yds)
- Adjustment Range: +/- 40 MOA travel
- Mount: 1" Picatinny (MIL-STD-1913) rail
- Return to Zero: Repeatable to 1 MOA after re-mounting
Heads-Up-Display Window
- Optical Surfaces: Anti-glare coating
- Window Dimensions: 1.20" x 0.85" (30 x 23mm)
- Front Window Material: 1/8" solid glass
- Rear Window Material: Shatter resistant laminate (3/16" thick)
- Field of View (100 yds): 30 yds (28m) at a 4" eye relief
- Standard Reticle: 65MOA ring with a single 1 MOA aiming dot
Electrical
- Brightness Adjustment Range: 146,000:1 brightest to lowest
- Function Button Location: Left side near the rear of sight
- Power Source: 2x 1.5V AA batteries (supports lithium, alkaline, or rechargeable)
- Battery Life: 1,000 continuous hours (lithium) at nominal setting 12; 600 continuous with AA alkaline
- Brightness Settings: 20 settings with scrolling feature
- Auto Battery Check Indicator: Flashing reticle upon start-up
- Auto Shut-down: At 8 hrs- programmable to 4 hrs
|
|
|
